說明：

CRS585高壓共軌噴油器試驗臺是根據柴油機ECU工況，同時提供卡特彼勒、博世、電裝、德爾福、西門子等共軌系統控制信號（CP1/ CP2/ CP3/ HP3/ HP4/ DELPHI），驅動高壓共軌油泵和高壓共軌噴油器進行工作，內存3500多套數據，驅動信號參數用戶可以根據自己的實際情況進行設置，并可分組進行保存，便于維修人員對高壓共軌系統的工作狀態進行判斷和維修。系統支持實時在線升級服務，保證了設備數據更新，同時提供免費的遠程控制窗口，快速解決你的后顧之憂，為你在維修路上保駕護航。

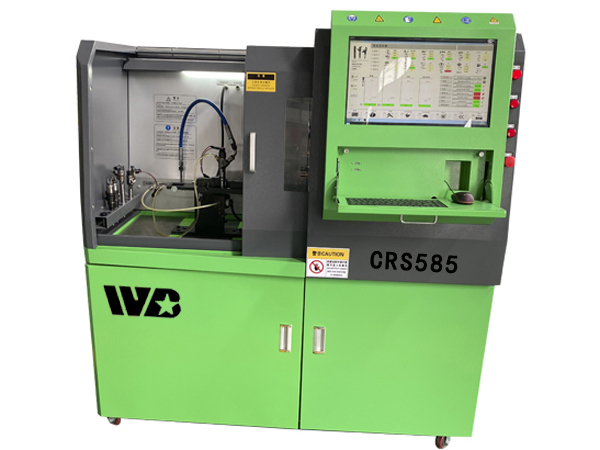

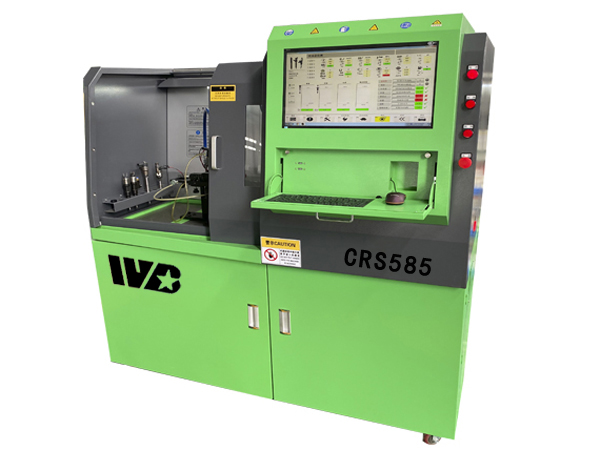

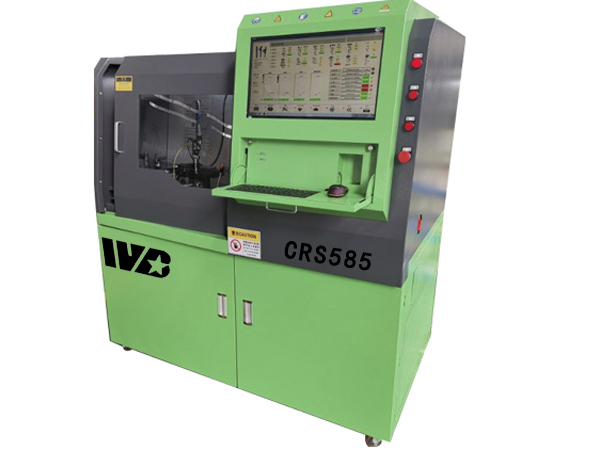

CRS585 high pressure common rail injector test bench

Explanation:

The CRS585 high-pressure common rail injector test bench is based on the diesel ECU operating conditions, and also provides common rail system control signals (CP1 / CP2 / CP3 / HP3 / HP4 / DELPHI) of Caterpillar, Bosch, Denso, Delphi, Siemens, It drives high-pressure common rail oil pump and high-pressure common rail injector to work. It has more than 3,500 sets of data. The driving signal parameters can be set by users according to their actual conditions, and can be saved in groups, which is convenient for maintenance personnel to work on the high-pressure common rail system. Status judgment and maintenance. The system supports real-time online upgrade service, which guarantees the equipment data update. At the same time, it provides a free remote control window to accurately and quickly resolve your worries and escort you on the road of maintenance.

標配功能

Standard functions

1、測試高壓共軌噴油器

1、Testing high-pressure common rail injectors

2、測試壓電晶體式噴油器

2、Testing Piezo Crystal Injectors

3、測試噴油器相應時間

3、Accurately test the corresponding time of the injector

4、博世IQA碼自生成、能自定義修改噴油器各工況的噴油量

4、The Bosch IQA code is self-generated and can customize the fuel injection amount of each working condition of the injector

5、自動生成噴油量補償修正碼

5、Automatically generate fuel injection compensation correction code

6、檢測噴油器電磁閥電阻

6、Detecting the injector solenoid valve resistance

7、檢測噴油器電磁閥電感

7、Detecting Inductor Solenoid Valve Inductance

8、自動生成博世壓電噴油器ISA碼

8、Automatically generate Bosch piezoelectric injector ISA code

9、噴油器開啟脈寬測試

9、Injector opening pulse width test

10、噴油器開啟壓力測試

10、Injector opening pressure test

11、檢測噴油器電磁閥電流

11、Detecting injector solenoid current

12、檢測DRV閥控制電流

12、Detection of DRV valve control current

13、實時監控噴射驅動及系統電壓

13、Real-time monitoring of jet drive and system voltage

14、工控機電腦控制

14、Industrial computer control

15、雙驅動控制系統

15、Dual drive control system

16、強風冷散熱系統

16、High-efficiency strong air cooling system

17、7*24小時連續工作油溫不超42℃

17、7 * 24 hours continuous working oil temperature does not exceed 42 ℃

18、軌壓可達260Mpa

18、Rail pressure up to 260Mpa

19、智能化在線升級

19、Intelligent online upgrade

選配功能

Optional function

測試中壓共軌噴油器HEUI

Testing the medium pressure common rail injector HEUI

自動生成XPI（福康東康）修正碼

Automatically generate XPI (Fukang Dongkang) correction code

油溫過高自動報警

Automatic alarm when oil temperature is too high

油位不足自動報警

Automatic alarm for insufficient oil level

自生成DENSO噴油器QR碼

Self-generating DENSO injector QR code

自生成BOSCH噴油器IMA編碼

Self-generating BOSCH injector IMA code

自生成DELPHI噴油器C3i編碼

Self-generating DELPHI injector C3i coding

自生成Siemens噴油器修正碼

Self-generating Siemens injector correction code

技術參數

供 電 電 壓： 220VAC/380VAC

相   數：   單相/三相

頻   率：   50Hz/60Hz

電   流：     30A(Max)

電 機 功 率:   5.5Kw

油 溫 控 制：  加熱/強制冷風

油 溫 設 定： 40攝氏度

使用環境溫度： 小于35攝氏度

共軌壓力： 180-260Ma

共 軌 泵：    BOSCH CP3.3

控制回路電壓： DC12V/DC24V

ECU內部升壓： 0-200VDC(Max)

油 箱 容 積： 30升

噪 音 水 平： ≤85dB

毛   重：    350kg

外 型 尺 寸： 140*83*160cm

包 裝 尺 寸： 150*95*170cm

Technical Parameters

Power supply Voltage: 220VAC / 380VAC

Number of phases: single phase / three phase

Frequency: 50Hz / 60Hz

Current: 30A (Max)

Electric machine power: 5.5Kw

Oil temperature control: heating / cooling air

Oil temperature setting: 40 degrees Celsius

Working environment temperature: less than 35 degrees Celsius

Maximum common rail pressure: 180-260Ma

Common rail pump: BOSCH CP3.3

Control loop voltage: DC12V / DC24V

ECU internal boost: 0-200VDC (Max)

Fuel tank capacity: 30 liters

Noise level: ≤85dB

Gross weight: 350kg

Overall dimensions: 140 * 83 * 160cm

Package Size: 150 * 95 * 170cm
